Plug and play:
Y
Compatibele producten:

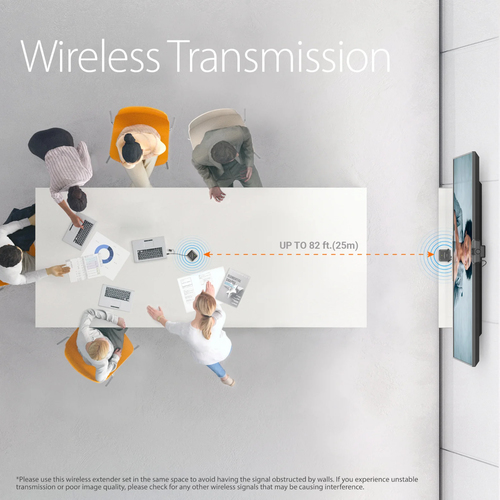

Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”

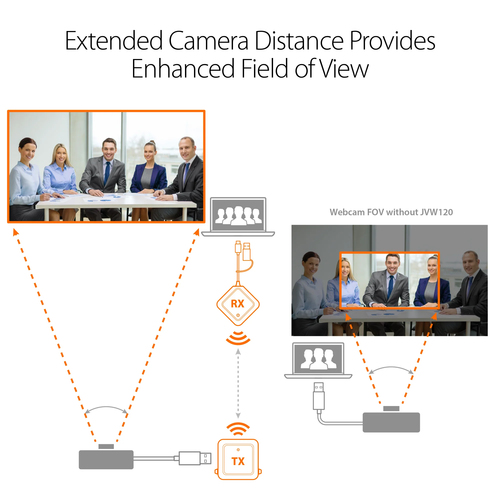

TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically
Compatibiliteit:

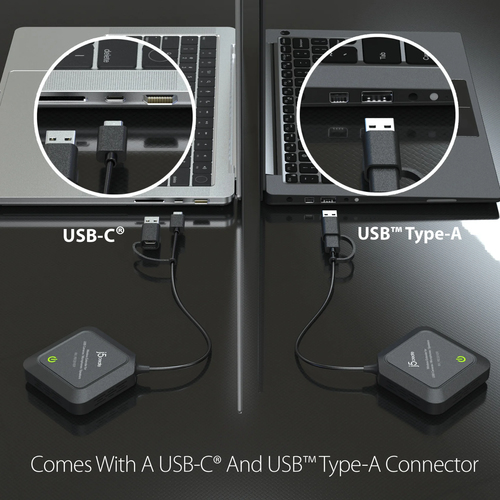

Available USB-C® or USB™ Type-A port
Windows® 11 / 10
macOS® 10.10 or later
Chrome OS™
Connectiviteitstechnologie:
Wired & Wireless
Aantal USB-aansluitingen:
3
USB-connectortype:
USB Type-A,USB Type-C
Audio:

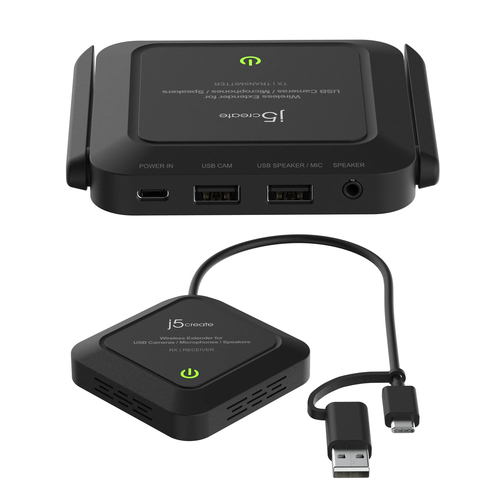

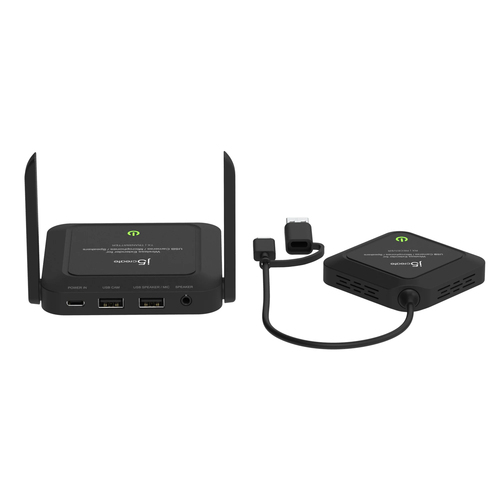

TX│Transmitter: 1 - USB-C® Power In 1 - USB™ Type-A Female (Camera) 1 - USB™ Type-A female (Speaker/Microphone) 1 - 3.5 mm Speaker Out
Type stroombron:
DC,USB
Energieverbruik opmerking:
TX Transmitter: 1 - DC 5V/3A Power Adapter RX│Receiver: 1 - Bus Power through USB-C®
Relatieve vochtigheid in bedrijf (V-V):
0 - 85
Luchtvochtigheid bij opslag:
0 - 85
Receiver afmetingen (B x D x H):
67 x 67 x 21
Receiver gewicht:
55.5
Transmitter afmetingen (WxDxH):
95 x 95 x 23
Transmitter gewicht:
112
Aantal per verpakking:
1
Breedte verpakking:
193
Diepte verpakking:
124
Hoogte verpakking:
50
Gewicht verpakking:
416
Type verpakking:
Box
Verpakkingsinhoud:

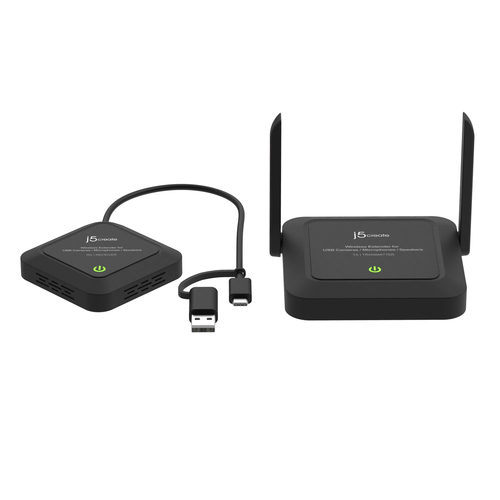

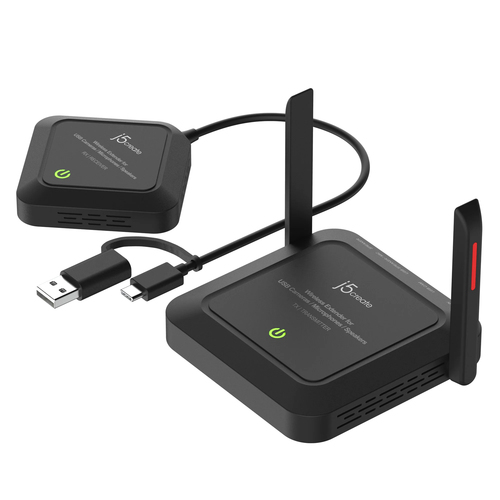

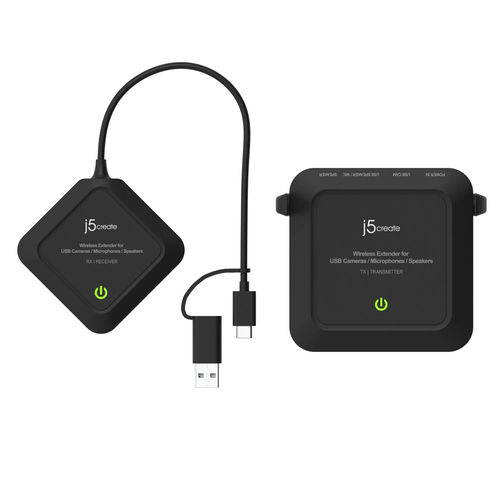

1 - JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x
Receiver)
1 - DC 5V/3A Power Adapter
1 - Hook and loop fastener
1 - Quick Installation Guide (QIG)
